Housing solutions

The suitable housing for your customized power solution

On request, our experts will design the appropriate housing for your customer-specific power supply. You will benefit from our many years of experience in many different projects of different markets. Of course, we also develop the housing together with your designers or we develop the power supply suitable for your housing provided.

Services

Mechanical construction
Metal housing parts, insulation, design foil
Applicable thermal management
IP protection class on customer's request (IPxx, ...)
Printing, labelling

Types

Aluminum extruded profile
DIN-Rail housing
(Miniature-) special housing
Metal sheet housing
Desktop housing
19" rack housing
Zinc/aluminum die-cast

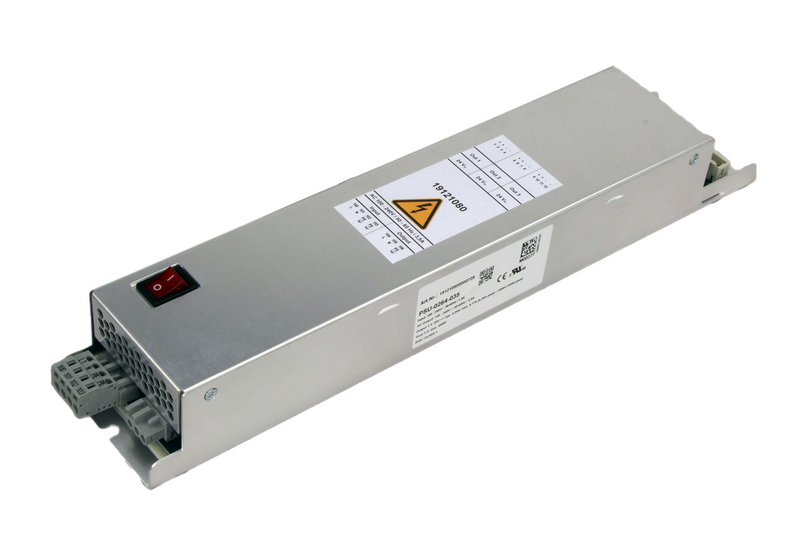

This image shows a closed aluminum housing with specific connections.

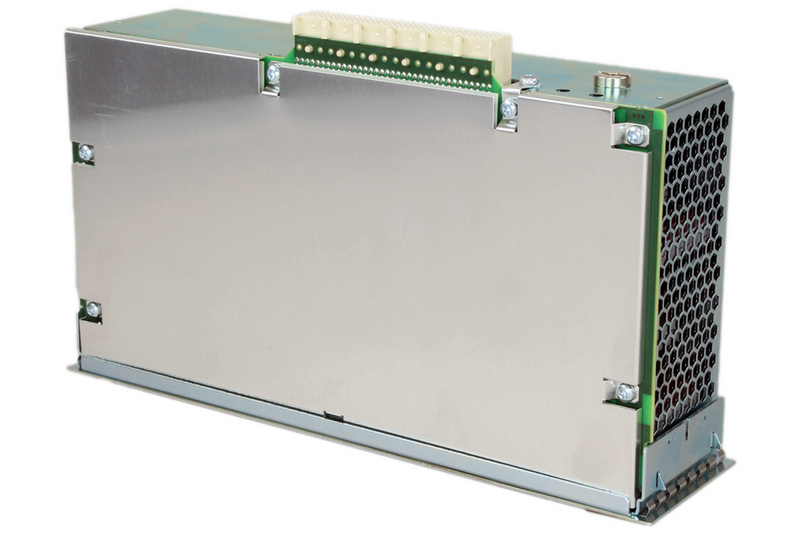

This image shows a metal housing with 6 parts of metal and HF-shielding.

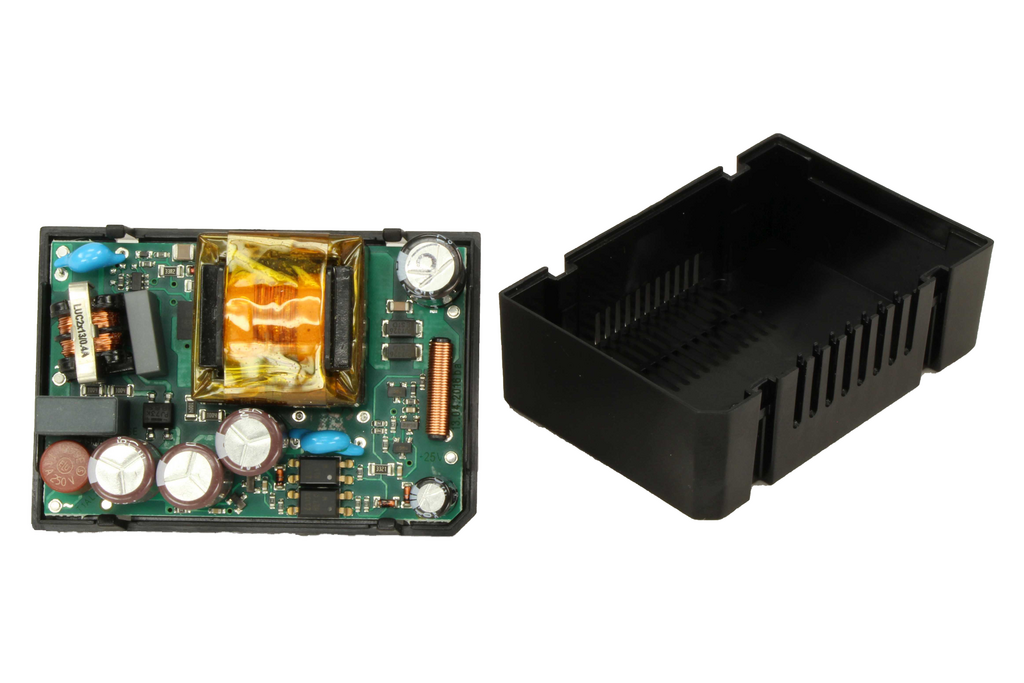

This housing has insulation protection of all parts and cooling slots for a fanless solution.

This housing shows high insulation standards for power lines for safety regulations of the power electronics.

Aluminum housing

Closed aluminum housing
Demensionally accurate integration and thermal coupling possible
Ideal position of input and output connectors to avoid additional cables

Metal housing

Metal shielding on all sides for lowest EMC radiation outside the PSU
Automated locking of the assembly
Disassembly only possible with special key
Satin lacquering creates an „elegant appearance“
Integrated HF-shielding contact strips

Plastic housing (building automation)

Very compact housing
Integrated ventilation slots for confection cooling
Suitable for laser marking
Robust and easy to assemble
Touch protection for service against dangerous voltage
Modular design without potting, thus sustainable and recyclable

Plastic housing (measurement tech.)

Perfect electrical insulation in the overall system
Plug & play connections to the measuring system
Space-saving, rounded design
Fixing elements allow a quick assembly
Easy removal of electronics is environmentally friendly and sustainable
